Availability: | |
---|---|
Quantity: | |
WB-OD-C
Webitelecomms
9403200000

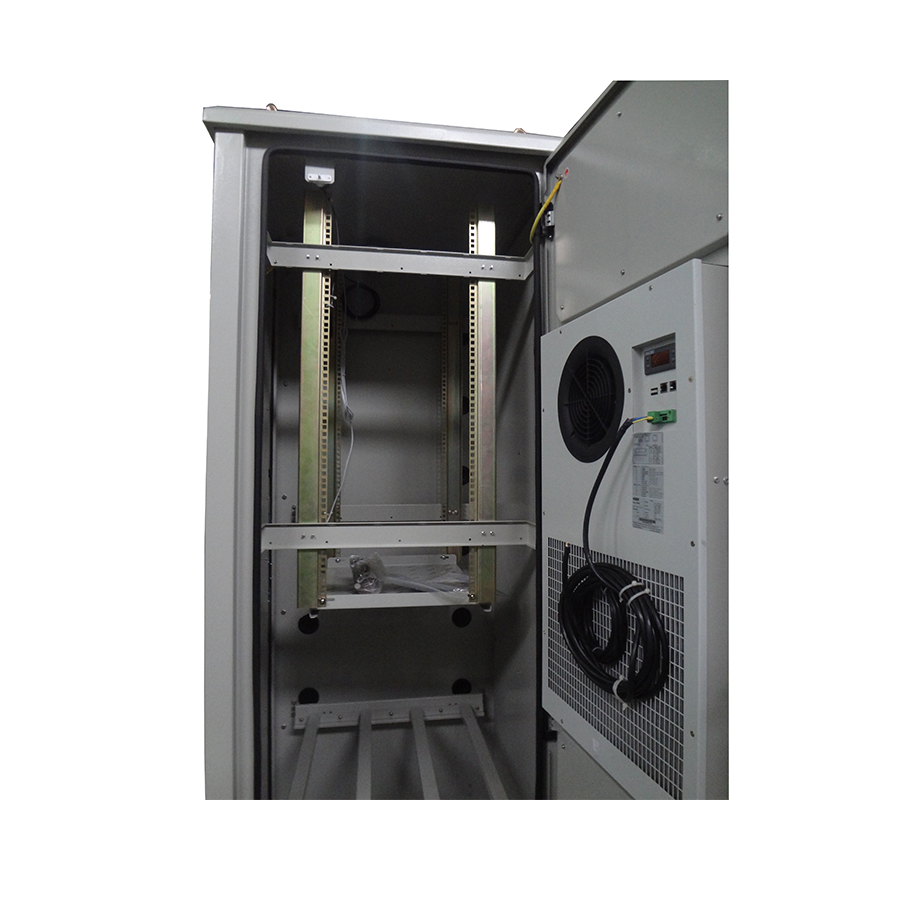

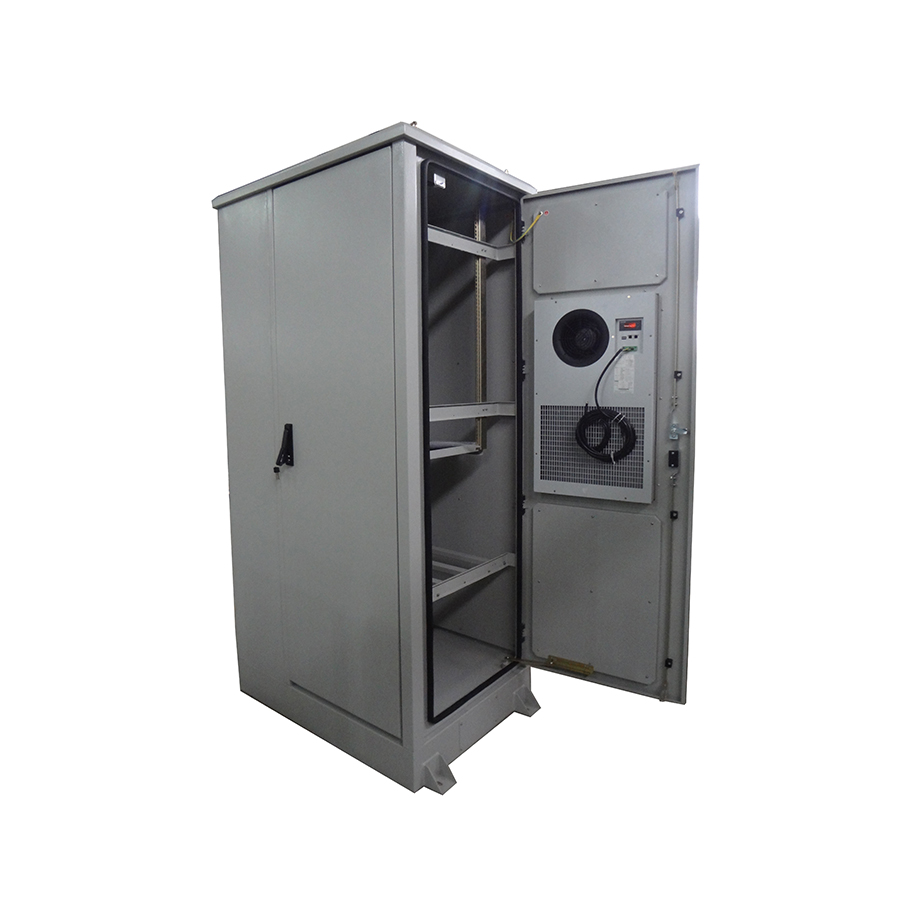

IP55 Outdoor Street Cabinet With 3 Rooms
Space
The cabinet includes 2 rooms for 19'' equipments(20U), batteries space and heat exchanger's space,another space for MDF
Doors

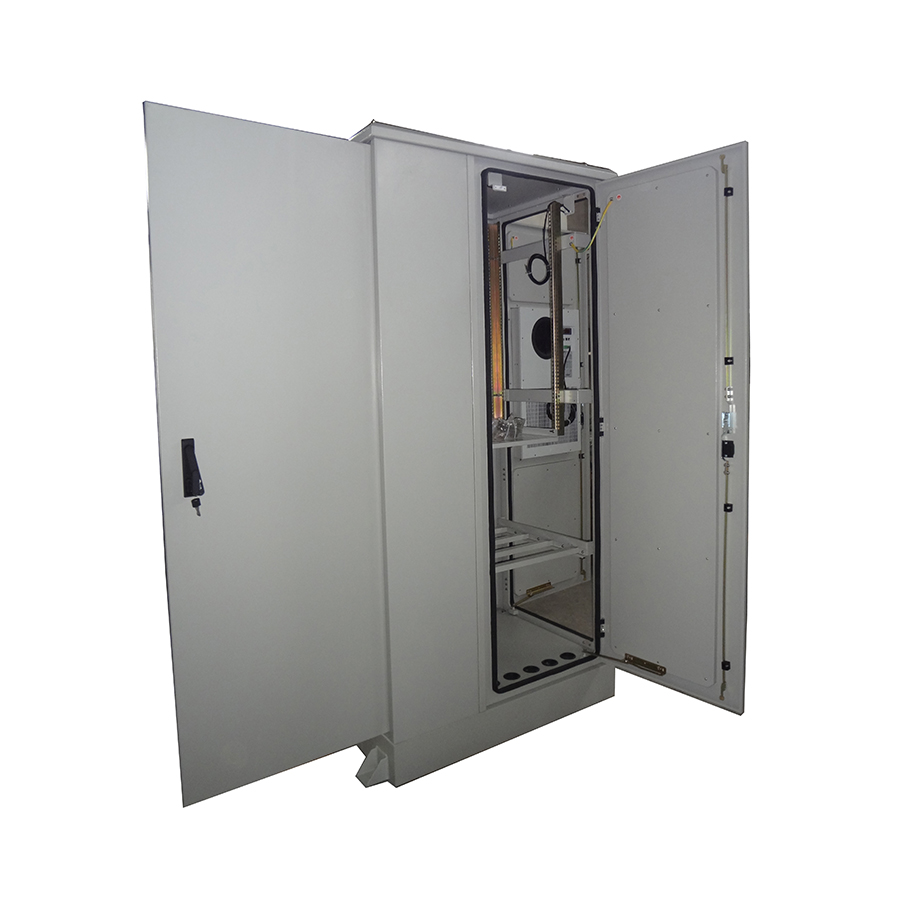

3pcs open doors for equipments, heat exchanger and MDF
Treatment
Galvanized sheet
Accessories

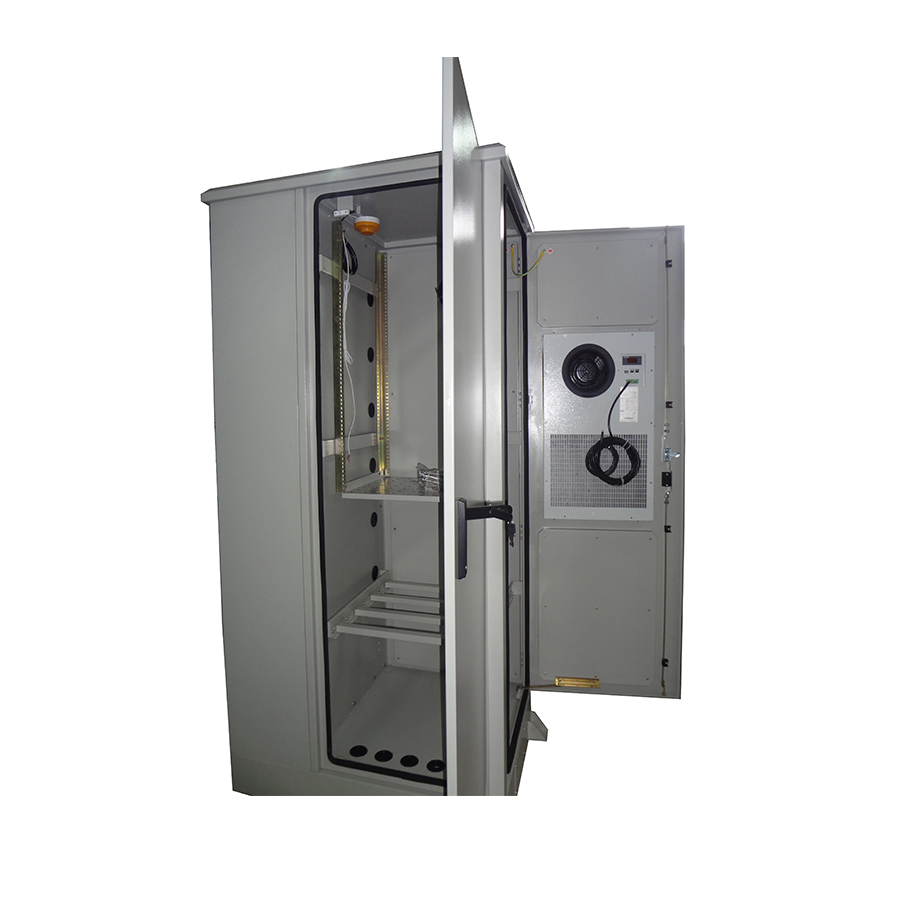

2-4 fans for ventilation,optional AC/DC air conditioner,heat exchanger.

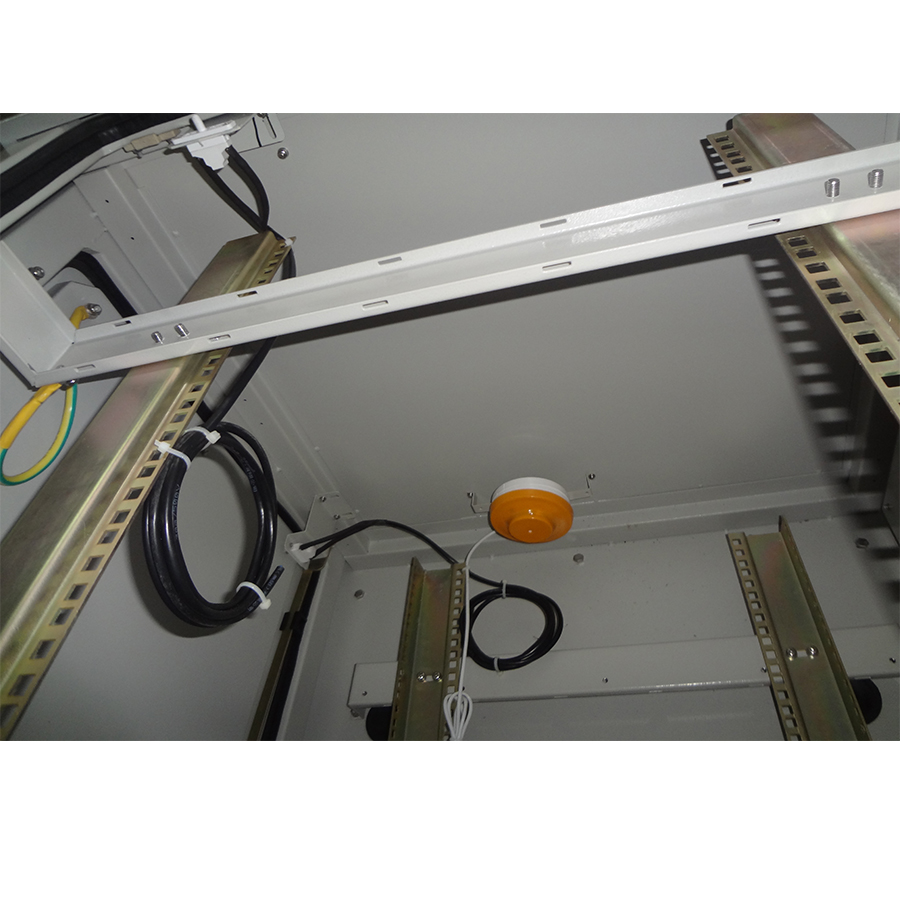

Earthing bar,door sensor,4x19'' rails,bottom plinth plinth,battery brackets
Packing
Wooden pallet,wooden cases+carton box
Double layers design for the body
Reasonable inside space application,equipments space,cabling space,battery space
The cabinet inside has scientific thermal cycle design,high capacity fans and special air filter system to satisfy the environmental demand
note:internal power(ventilation power)≤1000Watts
Dedicated air filter system to stop dust and rain inside cabinet during the fresh air into the cabinet
Good quality earthing system,grounding resistance is less than 10 milliohm,good lightning protection ability.

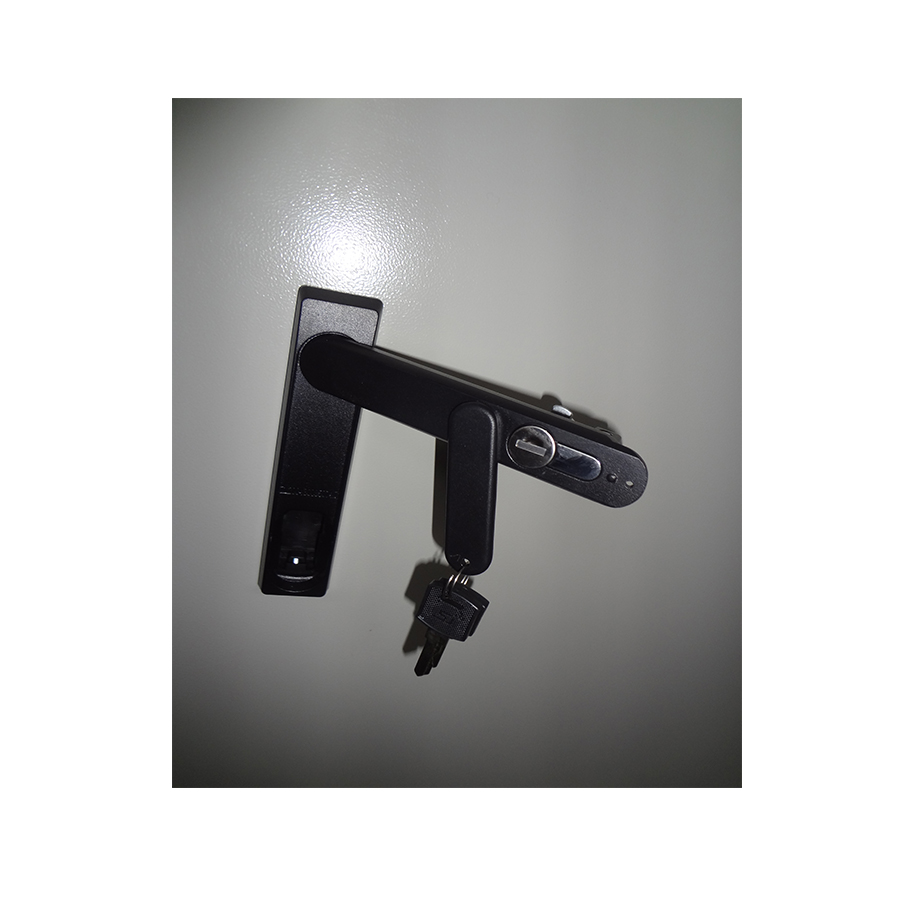

High quality 3 points handle lock,protection level IP55
Technical Feature:
Cabinet external temperature:-40℃~+60℃
Environmental temperature:-50℃~+55℃
Equipments working temperature:-18℃~+35℃
Environmental humidity:≤95%(+30℃)
Atmospheric presure:70~106Kpa
Material:galvanized steel,SPCC cold rolled steel
Thickness:1.5mm for the body,2.0mm for 19'' rails
Body color:gray RAL7035
Material | SPCC cold rolled steel or SS stainless steel |
Thickness | 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm and etc are all available to be designed for the material used |
Processing | Laser cutting, CNC punching, CNC bending, Hand welding, stamping, etc |
Surface treatment | Painting, Plasma electrostatic painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc |
Certification | ISO9001:2000 , CE, RoHS , SGS |
Delivery date | Within 30 days |
IP degree | IP55&65 |
Water proof | 0.2Mpa,10mm/min,30min,Endure water pressure 0.2Mpa; Water spray intensity :10mm/min .( for 30 min) No leakage inside Comply with GB 4208-1993 IP65 standard |
Fire proof | Non-metal marterial burning time< 1s(put onto blue fire over 30s) |
Noise proof | < 55db |
Voltage test | Comply with 48V DC or 220V AC |
Resistance test | resistance from earthing bolt to body <0.01Ω |
Working environment | Can normally work from -30 to 65 ° |
Color standard | Comply with GB/T 3181-1995 sheet 2 's color requirement |
Painting standard | Comply with GB/T 9286-1998 sheet 1, Class-1 |
9. Tolerance | +/-3mm |
Our Services
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
DDP service : We are willing to do "DOOR to DOOR" service for those customers who are busy with others work and no time spend on shipment.
